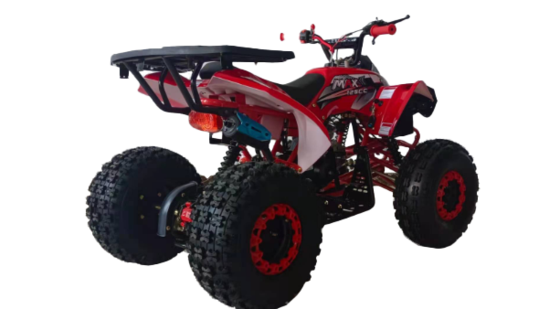

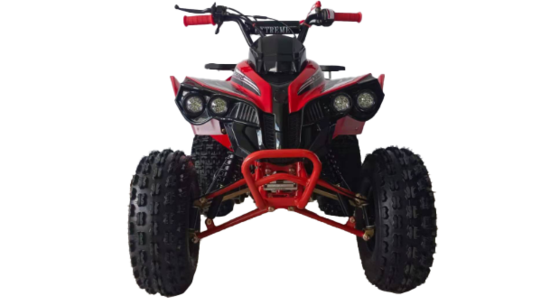

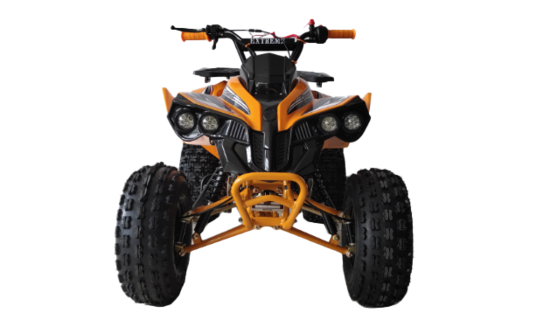

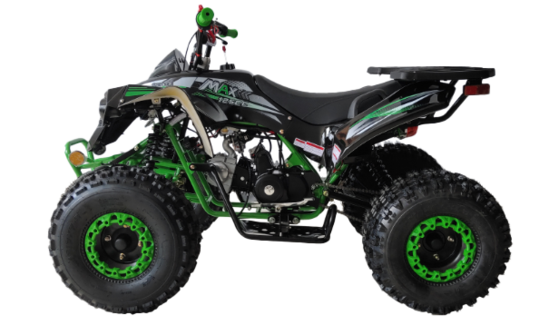

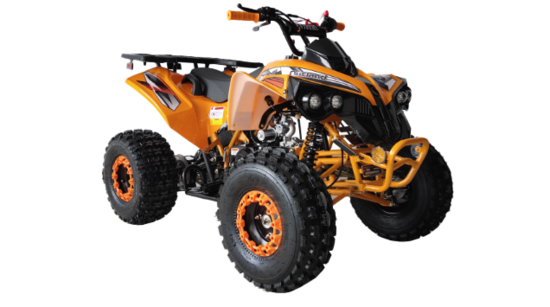

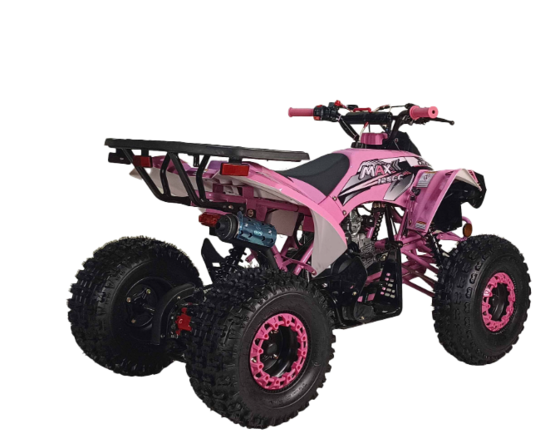

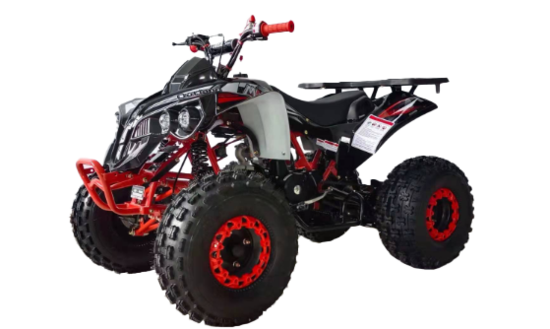

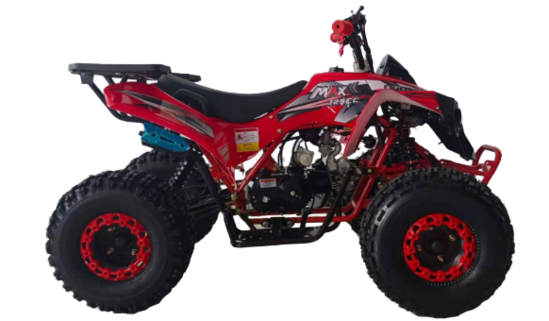

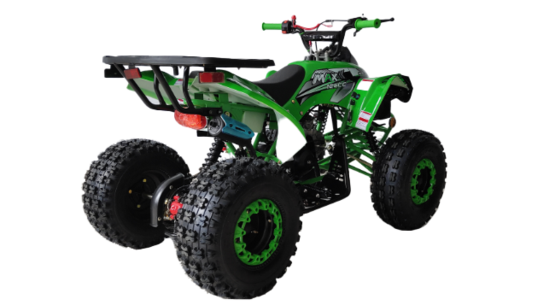

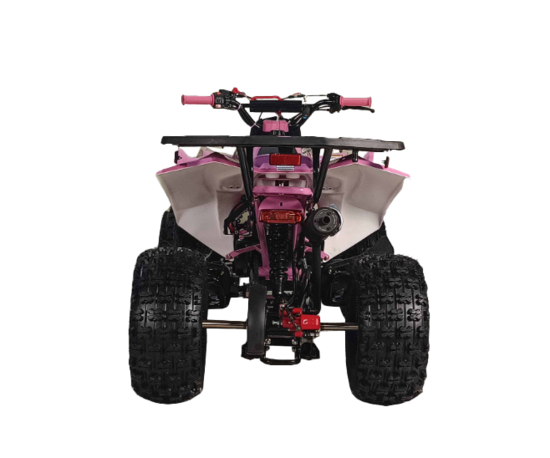

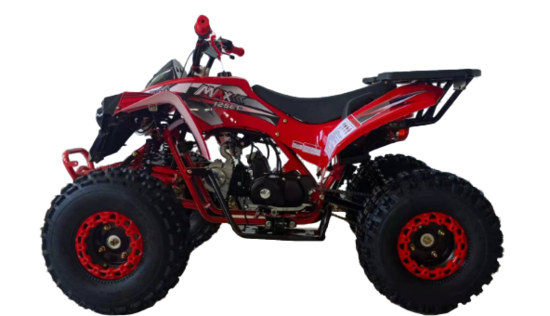

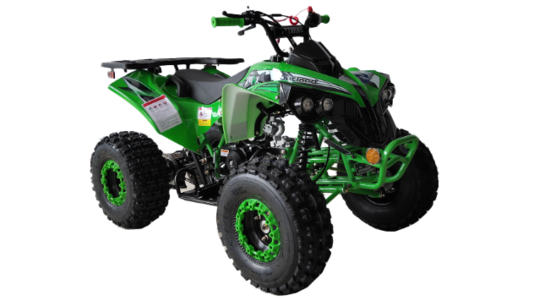

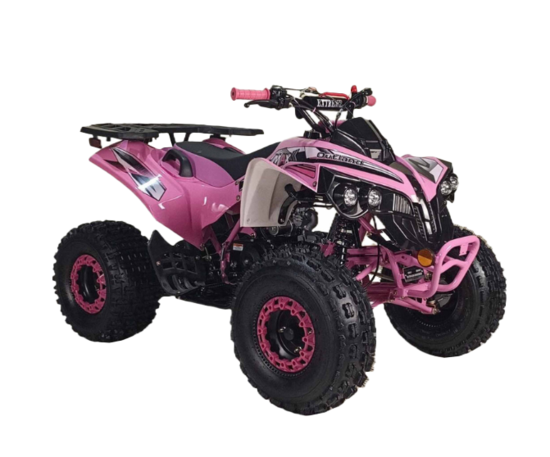

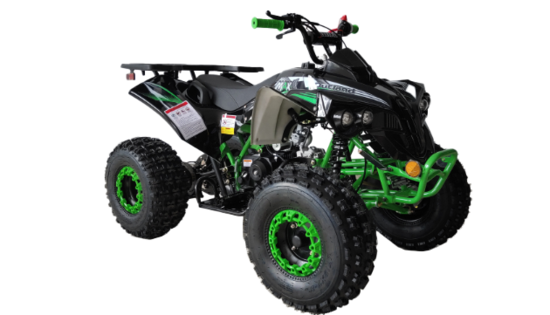

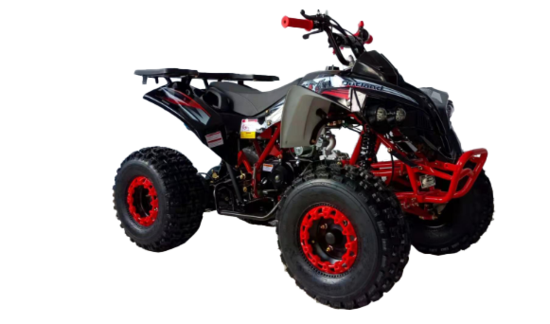

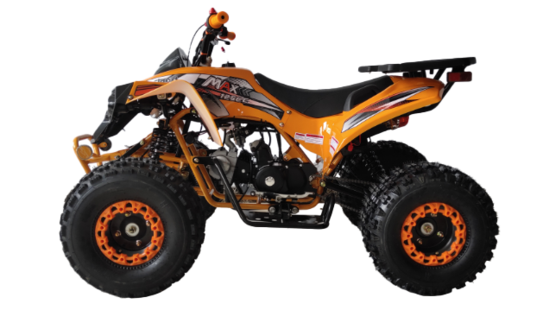

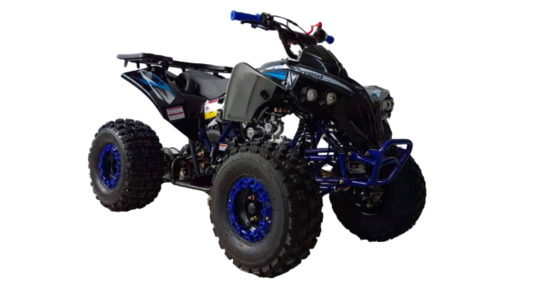

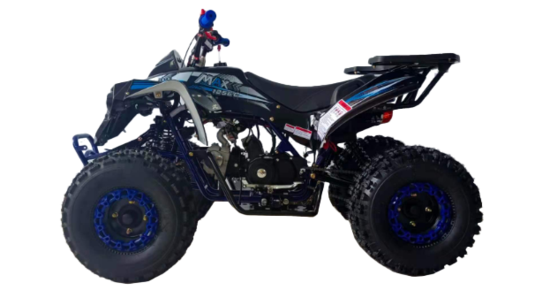

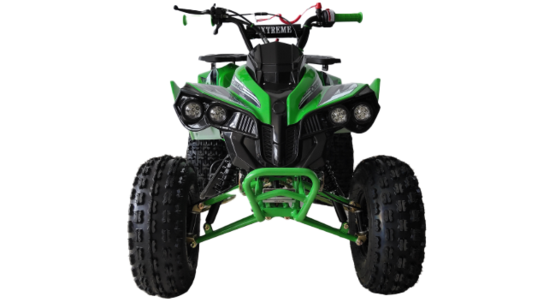

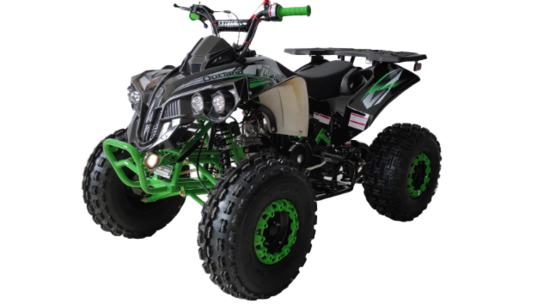

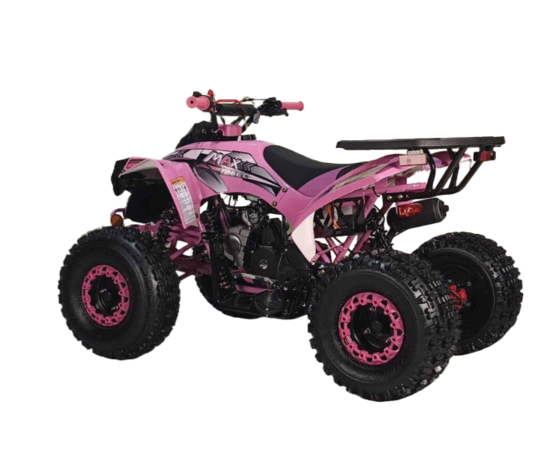

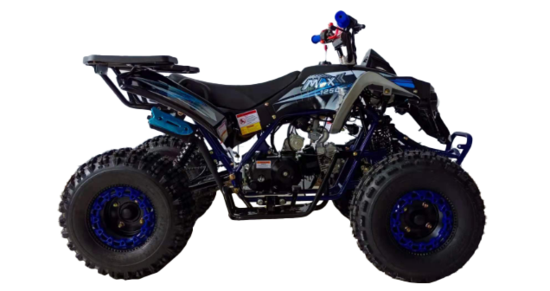

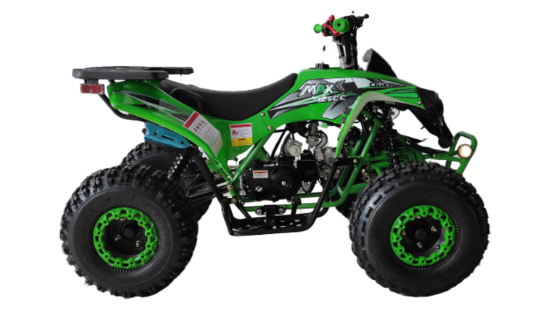

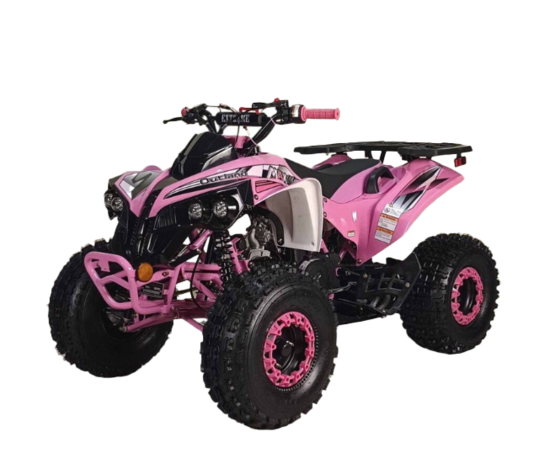

Vitacci Max 125cc

ENGINE
Type 110cc/125cc,(Air cooled),(4-stroke),(1-cylinder)
Bore x Stroke 52.4mmX49.5mm/52.4mmX55.5mm
Compression Ratio9.1:1
Carburetor PZ20
Ignition CDI
Starting Time (Electric start)
Transmission(R-N-F)
Drive Train(Chain Drive)
Max. Torque 7.0N.m/6000r/min/8.0N.m/5500r/min
Max. Power 4.8kw/7500r/min/5.3kw/7500r/min

CHASSIS
Suspension/Front(Independent double swing arm)
Suspension/Rear(Single swing arm)
Brakes/Front（Drum）
Brakes/Rear(Ventilated Hydraulic disc)
Tires/Front 19 x 7-8(19x 7-8 radial)
Tires/Rear 18x 9.5-8(18×9.5-8radial)

DIMENSIONS
L x W x H 1580mmX940mmX950mm
Seat Height 620mm
Wheelbase 1020mm
Ground Clearance 135mm
760mm
670mm
Battery 12V/5Ah
Fuel Capacity 2L
Dry Weight 112.7KG
Max. Load 75KG
Package Size 57.8X30.3X25.6 IN
Loading Quantity 96台/40 (96pcs/40HQ)

MAIN PERFORMANCE
Max. Speed 48km/h
Fuel Consumption 2.6L/100kg
Starting Time ≤15s
Brake distance 30km/h≤6.5m
